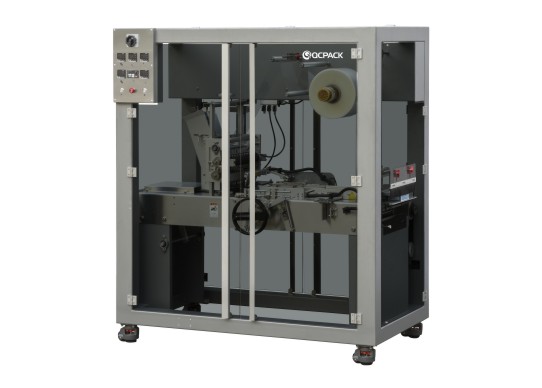

BTB-290 Hoppercellophane wrapping machine

This machine is suitable for film automaticwrappingof single box articles invarious industries (with gold tear tape). The whole frame of the machine adoptscarbon steel plastic spraying, landing multi-open safety door structure, flatpush box structure, easy to change the mold, adjust the distance to adjust thesize by hand, greatly save the time to change the mold, the fixed film is fixedby air expansion shaft roller, so that the film is more simple and faster.
Back to list >

BTB-290 Hoppercellophane wrapping machine

This machine is suitable for film automaticwrappingof single box articles invarious industries (with gold tear tape). The whole frame of the machine adoptscarbon steel plastic spraying, landing multi-open safety door structure, flatpush box structure, easy to change the mold, adjust the distance to adjust thesize by hand, greatly save the time to change the mold, the fixed film is fixedby air expansion shaft roller, so that the film is more simple and faster.
Back to list >

BTB-290 Hoppercellophane wrapping machine

This machine is suitable for film automaticwrappingof single box articles invarious industries (with gold tear tape). The whole frame of the machine adoptscarbon steel plastic spraying, landing multi-open safety door structure, flatpush box structure, easy to change the mold, adjust the distance to adjust thesize by hand, greatly save the time to change the mold, the fixed film is fixedby air expansion shaft roller, so that the film is more simple and faster.
Back to list >

BTB-290 Hoppercellophane wrapping machine

This machine is suitable for film automaticwrappingof single box articles invarious industries (with gold tear tape). The whole frame of the machine adoptscarbon steel plastic spraying, landing multi-open safety door structure, flatpush box structure, easy to change the mold, adjust the distance to adjust thesize by hand, greatly save the time to change the mold, the fixed film is fixedby air expansion shaft roller, so that the film is more simple and faster.
Back to list >

BTB-290 Hoppercellophane wrapping machine

This machine is suitable for film automaticwrappingof single box articles invarious industries (with gold tear tape). The whole frame of the machine adoptscarbon steel plastic spraying, landing multi-open safety door structure, flatpush box structure, easy to change the mold, adjust the distance to adjust thesize by hand, greatly save the time to change the mold, the fixed film is fixedby air expansion shaft roller, so that the film is more simple and faster.
Back to list >

BTB-290 Hoppercellophane wrapping machine

This machine is suitable for film automaticwrappingof single box articles invarious industries (with gold tear tape). The whole frame of the machine adoptscarbon steel plastic spraying, landing multi-open safety door structure, flatpush box structure, easy to change the mold, adjust the distance to adjust thesize by hand, greatly save the time to change the mold, the fixed film is fixedby air expansion shaft roller, so that the film is more simple and faster.
Back to list >

Product video

The main technical parameters

1. Thismachine is a kind of automatic high speed transparent film wrapping equipment, adoptsthe flat push type packaging method, all wrapping and heat sealing action iscompleted by CAM transmission, with fast speed, stable operation and othercharacteristics.

2.Different sizes of items can be packed by changing the mold. The newly designedquick adjustment structure makes the change of mold more simple and quick.

3. Thismachine adopts full aluminum alloy cutting knife holder, single rotary cuttingknife, cutting film accurate, smooth, large and small products without changingthe cutting mechanism.

4.Frequency converter is adopted to adjust the packaging speed, which can reach30 ~ 70 packages/min according to different packaging items.

5. Withdouble - sided fold plastic cosmetic device, make the film packaging more fit,more beautiful.

6. The newquick disassembly reel, with composite adhesive laser anti-counterfeitingunsealing line function, real anti-counterfeiting, moisture-proof role.

7.Automatic feeding and manual feeding two feeding mechanisms, automatic feedingcan be used with fully automated unmanned production line.

8. Theautomatic feeding mechanism has the function of stopping with or without box,with the overload protection device of clamping and torsion force, and theauxiliary film-lowering device of double-layer blowing.

9.Imported stainless steel integrated panel, integrated electrical box installedon the top, car rear door open all-aluminum electric box door.

10. Thewhole machine acrylic safety cover.

Technical parameter

Packing Material

BOPP film and gold tear tape

Packing Speed

3070 packs/min

Packing Size

(L)60-260×(W)30-160×(H)15-70mm

(L+W(mm)280W+H (mm)190)

Electric Supply & Power

220V 50Hz  5kw

Weight

350kg

Overall Dimensions

(L)1500×(W)850×(H)1700mm
