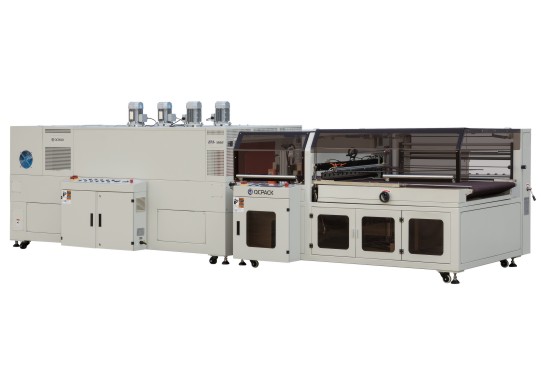

BTH-1000+BM-1000LSide sealing shrink wrapping machine

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.


Automatic Grade: Automatic

Suitable shrink film: POF

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

Packaging style: Side type full closed packing

Back to list >

BTH-1000+BM-1000LSide sealing shrink wrapping machine

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.


Automatic Grade: Automatic

Suitable shrink film: POF

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

Packaging style: Side type full closed packing

Back to list >

BTH-1000+BM-1000LSide sealing shrink wrapping machine

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.


Automatic Grade: Automatic

Suitable shrink film: POF

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

Packaging style: Side type full closed packing

Back to list >

BTH-1000+BM-1000LSide sealing shrink wrapping machine

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.


Automatic Grade: Automatic

Suitable shrink film: POF

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

Packaging style: Side type full closed packing

Back to list >

The main technical parameters

1. Side blade sealing continuously makes the unlimited length of the product;

2. Side sealing lines can be adjusted to the desired position which based on the product’s height

3. It adopts the most advanced OMRON PLC controller and touch operator interface. Touch operator interface accomplish all working date easily;
4. Sealing knife uses the aluminum knife with DuPont Teflon which is anti-stick coating & anti-hightemperature. So the sealing will not have cracking, coking and smoking with zero pollution.The sealing balance itself is also equipped with automatic protection function which effectively prevent from accidental cutting;

5. Automatic film feeding punching deice is to drill away the air and make sure the packing result is good;

6. Equipped with imported USA Banner photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;

7. Manually adjustable film-guide system and feeding conveyor platform make the machine suitable for different width and height items. When the packaging size changes, the adjustment is very simple by rotating the hand wheel without changing molds and bag makers;

Technical parameter

Model

BTH-1000

BM-1000L

Max. Packing Size

(L)No limitation (W+H)≤950mm (H)≤250mm

(L)2000×(W)1000×(H)300mm

Max. Sealing Size

(L)No limitation (W+H)≤1000mm

(L)2000×(W)1200×(H)400mm(inner size)

Packing Speed

1535 packs/minute

0-30m/min

Electric Supply & Power

220V/50Hz  3kw

380V/50Hz  20kw

Max Current

6A

40A

Air Pressure

5.5kg/cm3

/

Weight

950kg

500kg

Overall Dimensions

(L)2644×(W)1575×(H)1300mm

(L)2250×(W)1460×(H)1520mm
