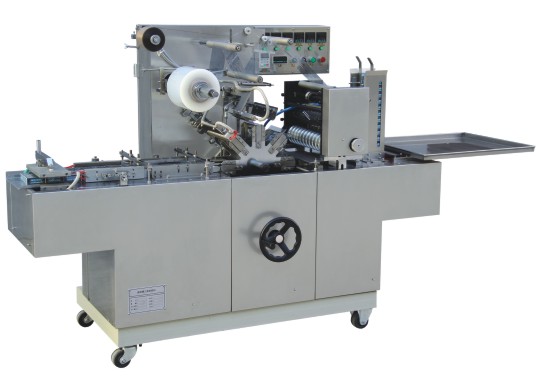

BTB-300ARotary type Cellophane wrapping machine

This machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles. With new-type of double safeguard, no need to stop the machine, other spare parts will not be damaged when the machine runs out of step.. Original unilateral hand swing device to prevent adverse shaking of the machine, and the non-rotation of the hand wheel when the machine keeps running to secure the security of the operator. No need to adjust the height of worktops on both sides of the machine when you need to replace mould, no need to assemble or dismantle the material discharge chains and discharge hopper.

Automatic Grade: Automatic   Driven Type: Electric

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

- mainly single box

Back to list >

BTB-300ARotary type Cellophane wrapping machine

This machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles. With new-type of double safeguard, no need to stop the machine, other spare parts will not be damaged when the machine runs out of step.. Original unilateral hand swing device to prevent adverse shaking of the machine, and the non-rotation of the hand wheel when the machine keeps running to secure the security of the operator. No need to adjust the height of worktops on both sides of the machine when you need to replace mould, no need to assemble or dismantle the material discharge chains and discharge hopper.

Automatic Grade: Automatic   Driven Type: Electric

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

- mainly single box

Back to list >

BTB-300ARotary type Cellophane wrapping machine

This machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles. With new-type of double safeguard, no need to stop the machine, other spare parts will not be damaged when the machine runs out of step.. Original unilateral hand swing device to prevent adverse shaking of the machine, and the non-rotation of the hand wheel when the machine keeps running to secure the security of the operator. No need to adjust the height of worktops on both sides of the machine when you need to replace mould, no need to assemble or dismantle the material discharge chains and discharge hopper.

Automatic Grade: Automatic   Driven Type: Electric

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

- mainly single box

Back to list >

BTB-300ARotary type Cellophane wrapping machine

This machine is widely applicable to the automatic film packaging (with gold tear tape) of various single boxed articles. With new-type of double safeguard, no need to stop the machine, other spare parts will not be damaged when the machine runs out of step.. Original unilateral hand swing device to prevent adverse shaking of the machine, and the non-rotation of the hand wheel when the machine keeps running to secure the security of the operator. No need to adjust the height of worktops on both sides of the machine when you need to replace mould, no need to assemble or dismantle the material discharge chains and discharge hopper.

Automatic Grade: Automatic   Driven Type: Electric

Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.

- mainly single box

Back to list >

Product video

The main technical parameters

1. No need to regulate the height of two work tops of the machine when the mould is replaced, no need to assemble or dismantle the material discharge chains and discharge hopper. Reduce the replacement time of the mould four hours to the present 30 minutes.

2. New-type double safeguard mechanisms are used, hence other spare parts will not be

damaged when the machine runs out of step without the stop of the machine.

3. Original unilateral hand swing device to prevent from shaking the machine adversely, and the non-rotation of the hand wheel during the running of the machine can secure the security of the operator.

4. New-type double-rotary film cutting cutter can ensure no need to mill the blade during many-year use of the machine, which overcomes the defect that the traditional stationary single-rotary film cutting cutter was easily worn.

Technical parameter

Packing Material

BOPP film and gold tear tape

Packing Speed

40-80 packs/Min

Max Packing Size

(L)240×(W)120×(H)70mm

Electric Supply & Power

220V 50Hz  5kw

Weight

500kg

Overall Dimensions

(L)2000×(W)700×(H)1400mm
